A Comprehensive Overview of Dental Impression Materials for Accurate Restorations

Impression making is a critical component of dental treatment that directly influences the success of the final prosthesis. Whether you’re fabricating crowns, bridges, complete or partial dentures, orthodontic appliances, or planning implants, a precise impression is essential to ensure accurate fit and function. The impression acts as a negative replica of the oral tissues, capturing every detail required to create a reliable and functional restoration. In this blog, we’ll provide a concise yet comprehensive overview of the various types of impression materials used in dentistry — from traditional rigid compounds to advanced elastomers and digital alternatives — highlighting their properties, uses, advantages, and limitations.

What are Impression Materials?

Impression materials are materials used to produce a negative record of the oral tissues, providing a three-dimensional and accurate replica of the mouth. This allows dental procedures to be carried out even in the absence of the patient. The impression is filled with dental stone or other model materials to create a positive cast. The accuracy of the final restoration or prosthesis depends on how well the impression material has recorded the tissue details. The positive reproduction of a single tooth is called a die, while the reproduction of several teeth or a full arch is referred to as a cast or model.

Classification of Impression Materials:

1. On the Basis of Uses

• For primary impressions, e.g., alginate, impression compound, elastomeric putty.

• For secondary impressions, e.g., light body elastomers and zinc oxide eugenol.

2. On the Basis of Setting Reaction

• Reversible (physical): impression compound, impression waxes, agar.

• Irreversible (chemical): alginate, impression plaster, elastomeric impression materials.

3. On the Basis of State of the Impression Material After Setting in the Oral Cavity

• Rigid: impression compound, zinc oxide eugenol, impression plaster, impression waxes.

• Elastic: alginate, agar, polysulfides, addition and condensation silicones, polyether.

4. On the Basis of Compression of Underlying Tissues

• Mucostatic: impression plaster, light body elastomers.

• Mucocompressive: impression compound, putty elastomers.

5. On the Basis of Consistencies

• Light body
• Medium body
• Heavy body
• Putty

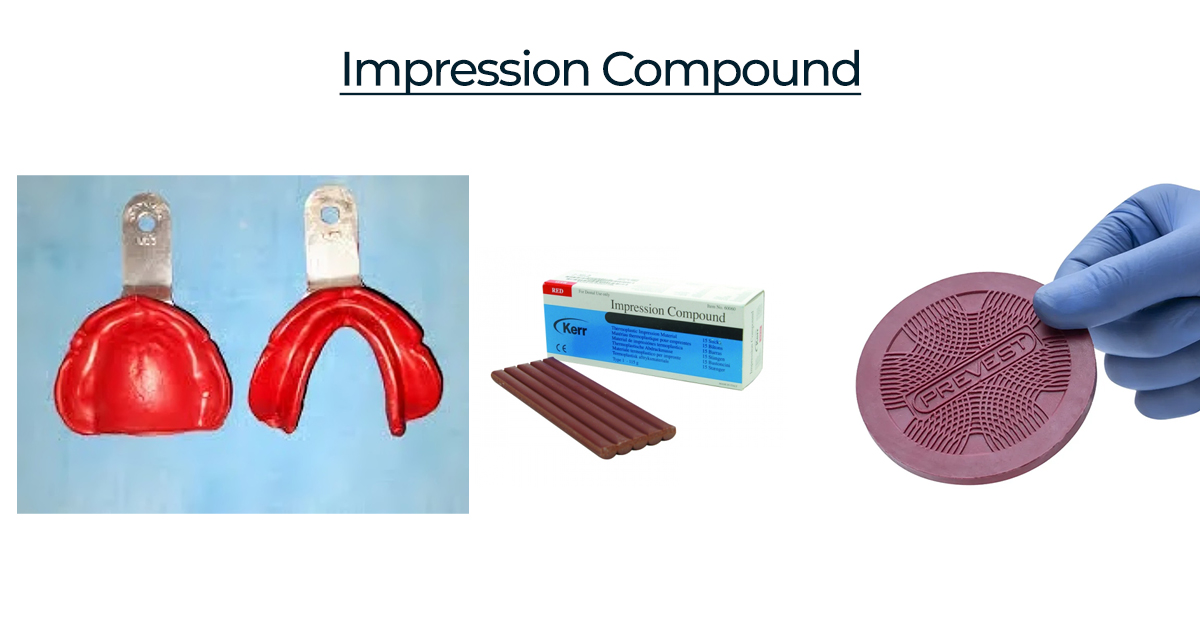

a. Impression Compound–

These are reversible, thermoplastic, rigid impression materials which set by physical change. It is one of the oldest impression materials and is used for making impressions of edentulous ridges. Impression compound softens at high temperatures under flame or in hot water and hardens at low temperatures. It is available as sticks, sheets, cakes, and cones in a variety of colors.

Classification:
Type I: Impression Compound
Type II: Tray Compound (Stiffer, used to prepare a tray for making an impression)

Uses:
Type I

• Used for making preliminary impressions in edentulous patients.
• For impressions of full crown preparations where gingival tissues must be displaced.
• Peripheral tracing or border molding.

Type II

• To check undercuts in inlay preparations.
• To make a special tray.

Advantages:

• The same material can be used a number of times in the patient to correct any recorded area or in case of errors.
• Accuracy can be improved by flaming the surface.
• The material has sufficient strength to support itself even in peripheral portions and doesn’t collapse completely if unsupported by a tray.

Disadvantages:

• Highly viscous, thus records fewer details of the area to be recorded.
• Compresses soft tissues during the impression.
• Poor dimensional stability, thus easily distorted.
• Difficult to remove in areas of severe undercuts.
• Peripheries are often overextended.

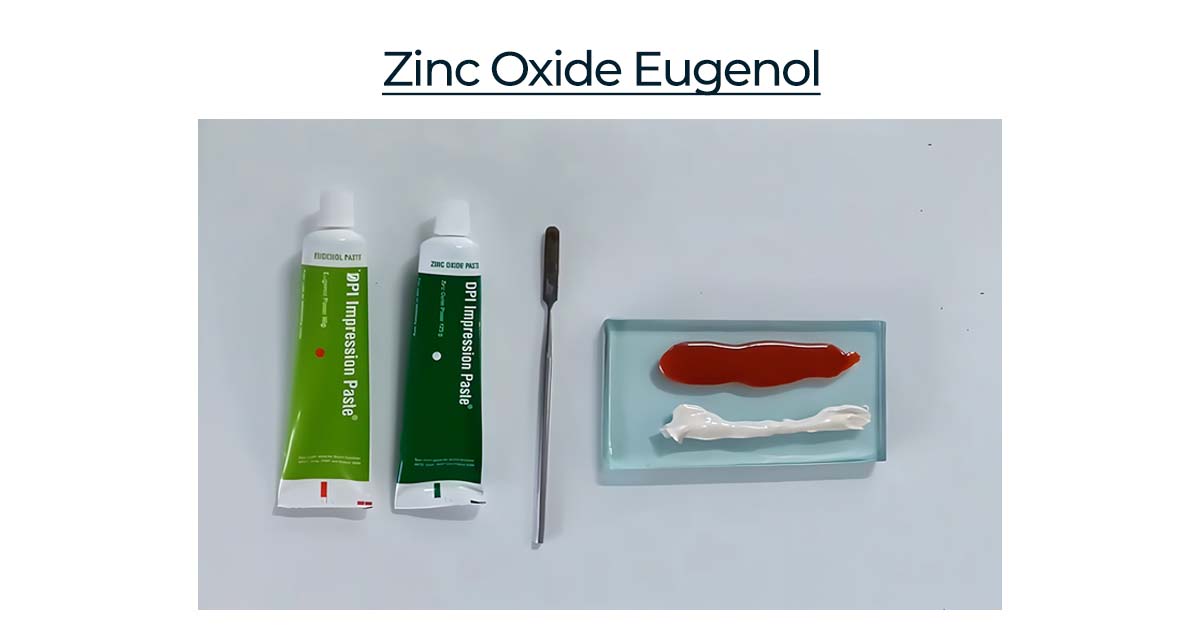

b. Zinc Oxide Eugenol Impression Material (impression paste)–

Zinc Oxide Eugenol Impression Material is an irreversible, rigid impression material used to make final impressions of the edentulous arches. It does not distort the soft tissues unlike impression compound. It is available in the market in two tubes; one is the base paste and the other is the accelerator, reactor, or catalyst paste. These are to be dispensed in equal amounts and mixed well until a uniform color is achieved for taking an impression.

Classification:
Type I: Hard
Initial setting time: 3–6 minutes
Final setting time: 10 minutes

Type II: Soft
Initial setting time: 3–6 minutes
Final setting time: 10 minutes

Uses:

• Bite registration paste
• Impressions for edentulous patients

Advantages:

• Sufficient body to make up for any minor underextensions in the tray itself during impression making
• Provides enough working time to complete border molding
• Registers accurate surface details
• Dimensionally stable
• Minor defects can be corrected easily without discarding the whole impression
• Does not require separating media as it does not stick to the cast material

Disadvantages:

• It requires a special or custom tray for impression making
• Sticky in nature, adheres to the tissue
• Eugenol may cause a burning sensation and tissue irritation
• Cannot be used in dentate areas and in areas of severe undercuts as it is inelastic in nature

c. Elastic Impression Materials:

An ideal impression material for accurately reproducing tooth form and relationships would be an elastic substance that can be withdrawn from the undercut area and return to its original form without any distortion.
By definition, an elastic impression material is one that can transform from a semisolid, nonelastic state to a highly elastic solid state.

Elastic impressions can further be divided into the following types:

1. Hydrocolloids – e.g., Agar (reversible), Alginate (irreversible)
2. Elastomeric – e.g., Addition silicone, condensation silicone, polysulfide, polyether, etc.

1. Hydrocolloids-

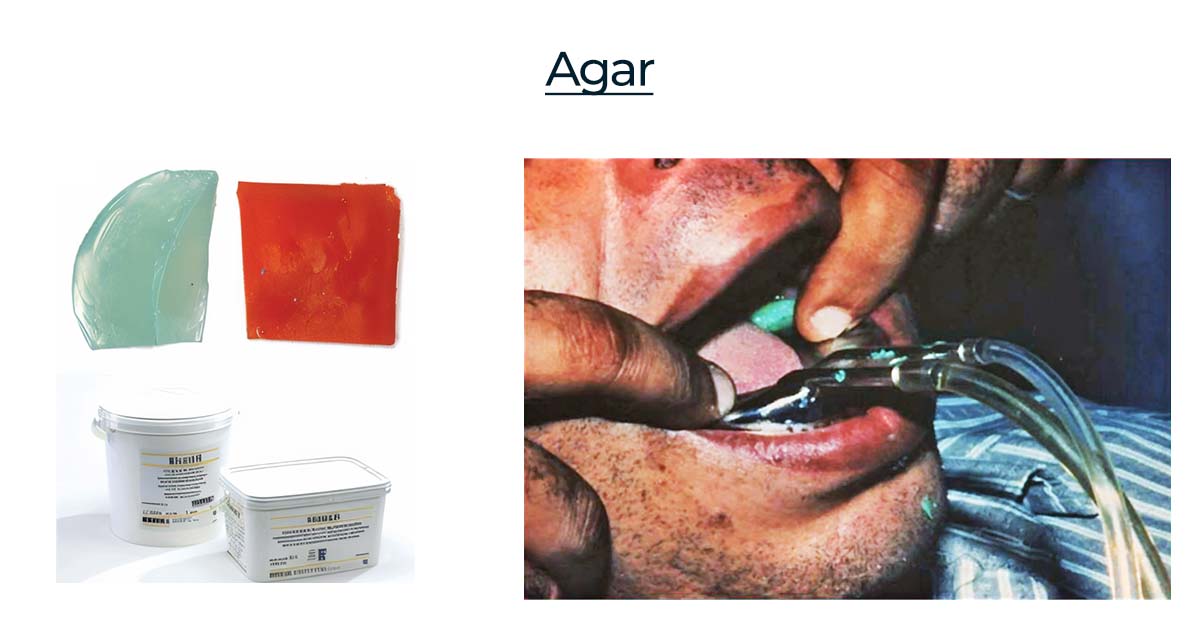

Agar:

Agar is the very first elastic impression material used in dentistry. It is an organic hydrophilic colloid (polysaccharide) extracted from a type of seaweed (Gelidium, Gracilaria, etc.). It is a sulfuric ester of a linear polymer of galactose. Although it is an excellent impression material and yields accurate impressions, it has presently been largely replaced by alginate hydrocolloid and rubber impression materials.

Classification:
Type 1 — Heavy-bodied (for use as tray material)
Type 2 — Medium-bodied (for use as tray or syringe material)
Type 3 — Light-bodied (for syringe use only)
Type 3A — Light-bodied for agar-alginate combination technique

Uses:
It is not used anymore, but the following were its uses in the past:

• Used for cast duplication
• Full mouth impressions without deep undercuts
• Fixed partial dentures before elastomers
• Tissue conditioner

Agar is not used anymore; hence, we will not get into further details and will quickly discuss the advantages and disadvantages.

Advantages:

• Accurate dies can be prepared if handled correctly.
• Good elastic properties help in recording the undercut areas
• Good recovery from distortion
• It is palatable and well tolerated by patients
• Economical when compared to other elastic materials

Disadvantages:

• Does not flow well when compared to current elastic materials
• During insertion or gelation, the patient may experience thermal discomfort
• Cannot be electroplated, so metal dies are not possible
• Tears very easily; greater gingival retraction is required to provide adequate thickness of the material
• Has to be poured immediately and cannot be stored for long
• Requires special techniques and expensive equipment
• Although it can be reused, it is impossible to sterilize this material. Also, with repeated use, there may be contamination of the material and deterioration in its properties

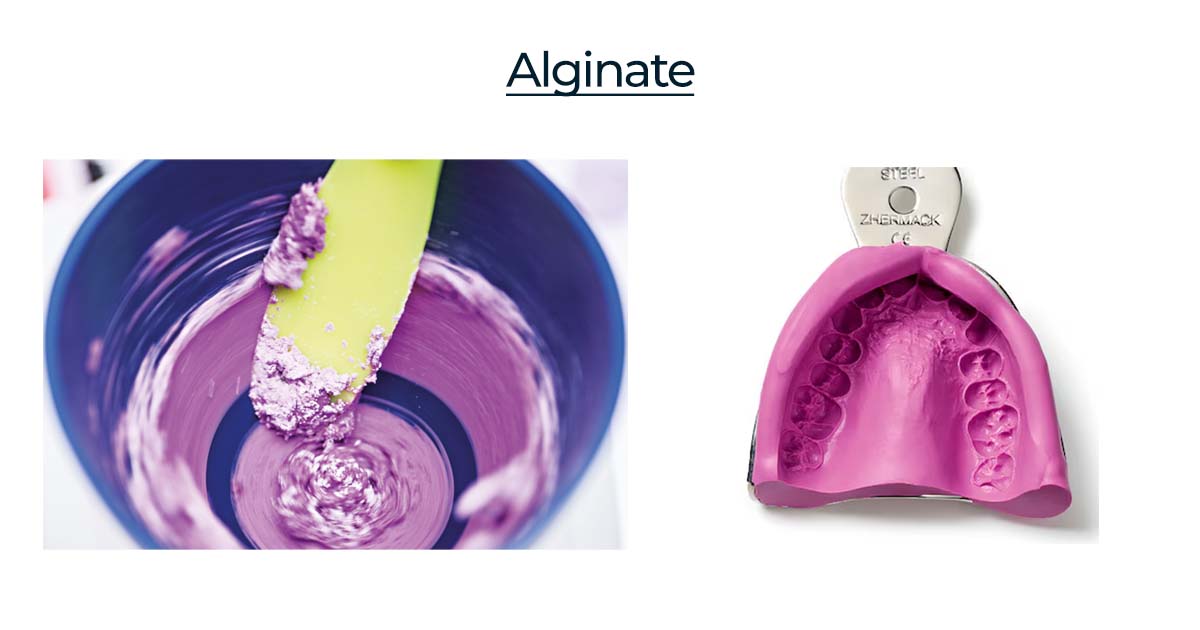

Alginate:

Alginate was developed as a substitute for agar when it became scarce during World War II. It is a naturally occurring hydrophilic colloidal polysaccharide. Alginate is perhaps the most widely used impression material. It is available in the market in powder form in packets, dust-free alginate, chromatic alginate that changes colour during setting and mixing, etc.

Types:
Type I: Fast Setting
Type II: Normal Setting

Uses:

• It is used for impression making when there are undercuts, excessive salivation, or for partial dentures with clasps.
• For making preliminary impressions for complete dentures.
• For impressions to make study models and working casts.
• For duplicating models.

The manipulation requires a proper w/p ratio to be followed as per the manufacturer. The water is taken first, followed by sprinkling of powder into the water. The mixing is started with a stirring motion to wet the powder with water. Once the powder has been moistened, rapid spatulation by swiping or stropping against the side of the bowl is done. A vigorous figure-eight motion can also be used. The Fast set has a mixing time of 45 seconds, working time of 1.25 minutes, and setting time of 1.5 to 2 minutes. Whereas the normal setting alginate has a mixing time of 60 seconds, working time of 60 seconds, and setting time of 3 to 4.5 minutes.

Advantages:

• Easy to mix and manipulate
• Minimum equipment is required
• Set impression is flexible enough
• Low cost
• Good accuracy if handled properly
• Hygienic as fresh material is used for each impression
• Good tissue details even in the presence of saliva

Disadvantages:

• Cannot be electroplated, so metal dies are not possible
• Impression once recorded cannot be corrected; a new impression must be taken if any error occurs
• The distortion is not easily detectable and often goes unnoticed
• Poor dimensional stability and thus cannot be stored for long
• Poor tear strength
• Not a recommended material where a higher degree of accuracy is required, e.g., cast RPD, crowns, and FDPs, etc.

Read Also: Alginate Impression Material: A Fundamentals Dental Product

2. Elastomeric Impression Materials-

Elastomers are soft and rubber-like and far stronger and more stable than the hydrocolloids. They are known as synthetic rubbers. These materials are the most accurate and dimensionally stable impression materials available in dentistry.

Types:
According to their chemistry–
Chemically, there are four kinds of elastomers:

1. Polysulfide
2. Condensation polymerizing silicones
3. Addition polymerizing silicones
4. Polyether

Classification based on viscosity–
Each type may be further divided into four viscosity classes based on consistencies determined immediately after completion of mixing.

• Type 0 — Putty consistency (very heavy)
• Type 1 — Heavy-bodied consistency (tray consistency)
• Type 2 — Medium-bodied consistency (regular-bodied)
• Type 3 — Light-bodied (syringe consistency)

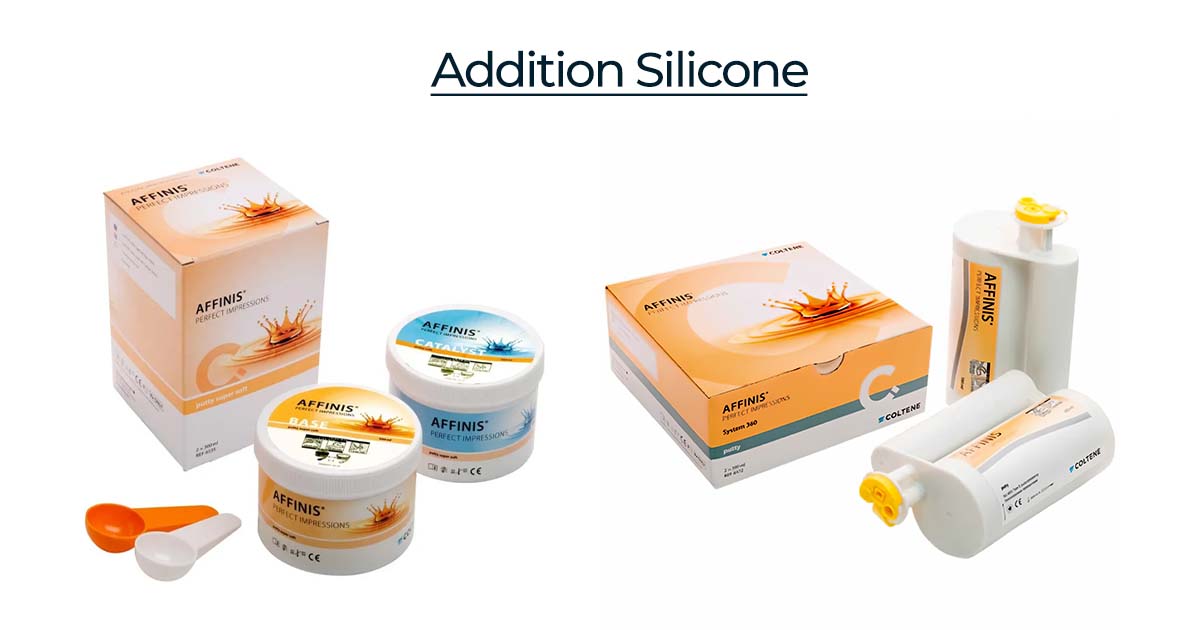

Addition Silicone:

These are the most widely used impression materials in fixed prosthodontics and are available in four viscosities: light, medium, heavy, and putty, as base and accelerators.

Uses:

• Impressions for crowns, bridges, implants
• Maxillofacial prosthodontics
• Registering occlusion

Advantages:

• Excellent dimensional stability and thus can be easily stored before casting
• Elastic recovery
• Great accuracy
• Short setting time
• Good tear resistance
• Good compatibility with gypsum
• The impression can be cast multiple times

Disadvantages:

• The impression area must be dry to prevent inaccuracies in the impression
• Sulfur present in latex gloves and rubber dams may interfere with the polymerization of the base and catalyst
• Hydrogen gas produced during its setting reaction may lead to pitting in the cast

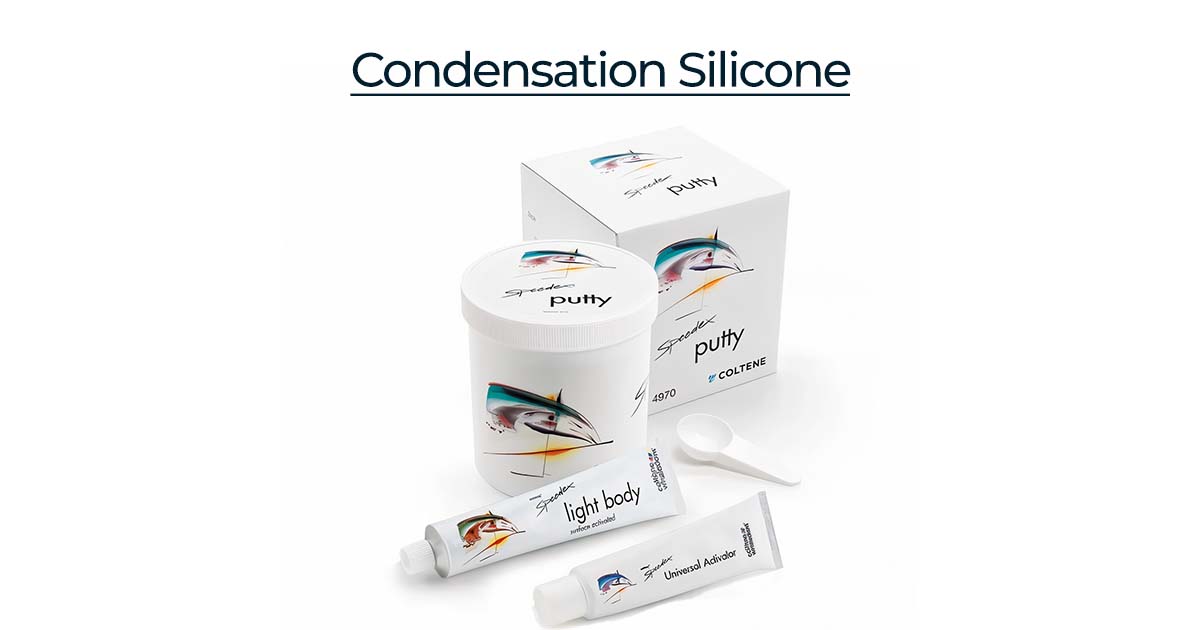

Condensation silicone

Often referred to as conventional silicone as it was the first to be discovered out of the two silicones. It is more cost-effective than other elastomeric impression materials, but its properties do not help in producing good impressions. It is also available in light, medium, and heavy viscosities in syringes, tubes, and jars of base and catalyst.

Uses:

• Impressions for crowns and bridges

Advantages:

• Good elastic recovery
• Pleasant odor and taste
• Accurate reproduction

Disadvantages:

• Dimensional deformation over time
• Hydrophobic; field should be well dried before making an impression
• Dimensional stability is affected due to reaction byproducts like alcohol that evaporates as it is formed

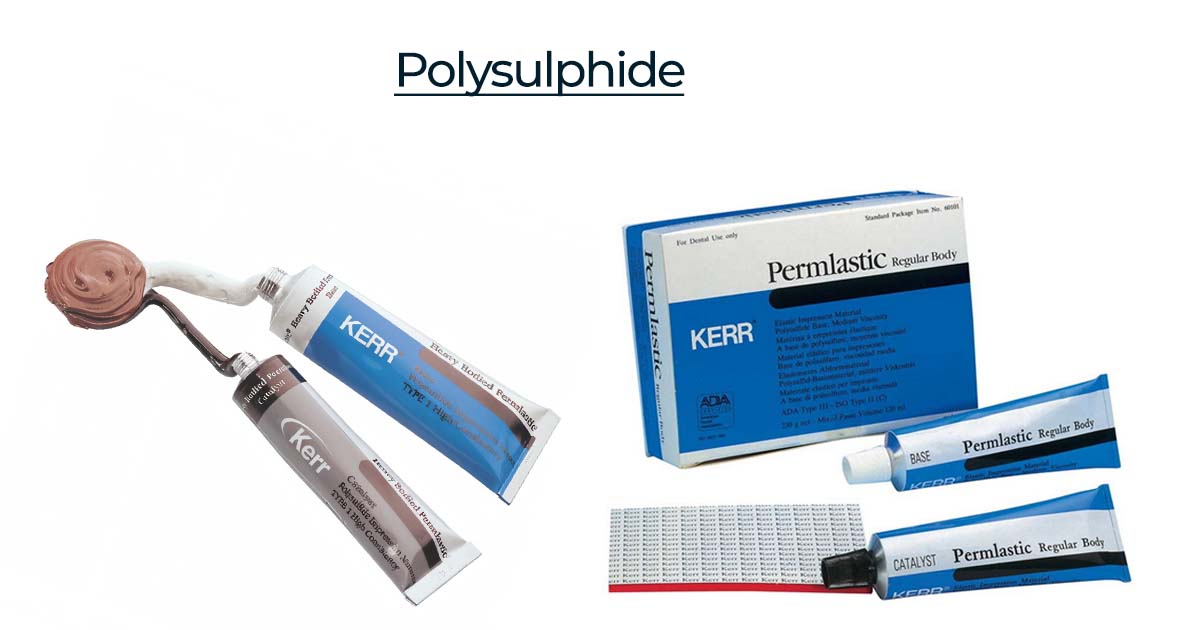

Polysulphide:

These were the first elastomers to be introduced in dentistry and are quite messy to work with and require a longer working time. Polysulfides are available in three viscosities: light, medium, and heavy, and have a two-paste system of base and accelerator.

Uses:
Can only be used in complete denture cases and nowhere else.

Advantages:

• Least rigid (most flexible of all the elastomers)
• Good tear strength
• Excellent reproduction of surface details

Disadvantages:

• Requires a custom tray
• Long setting time, and in colder climates, setting can take even longer. This adds to the patient’s discomfort
• Unpleasant odor, color, and taste
• Hydrophobic, so the mouth should be dried thoroughly before making an impression
• It has the highest permanent deformation (3–5%) among the elastomers. Elastic recovery improves with time, so pouring of the model should be delayed by half an hour. Further delay is avoided to minimize curing shrinkage. Loss of the by-product (water) also causes shrinkage.

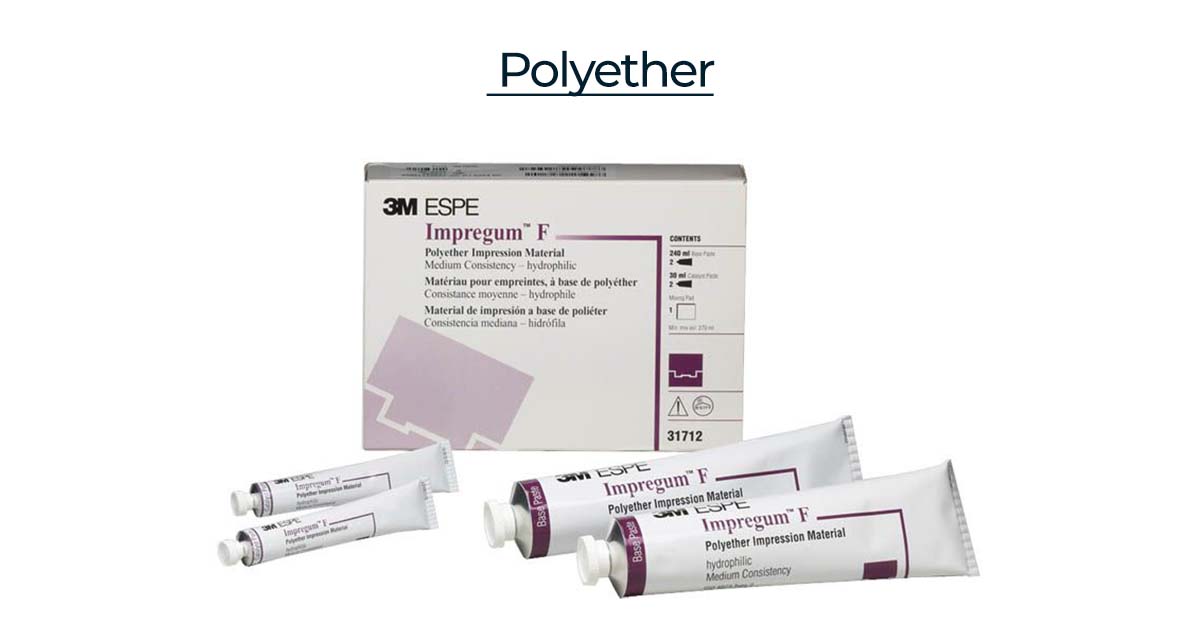

Polyether

Polyether Rubber Impression Materials have good mechanical and dimensional stability, but the working time is often very short and the material is quite stiff to work with. It is also available in light, medium, and heavy viscosities with separate tubes for accelerator and base.

Uses:

• Impressions for crowns, bridges, and implants
• Border molding in complete denture fabrication
• Indirect inlay and onlay impressions
• Can be used for corrective impressions as it can be added to previously set material

Advantages:

• Accurate and high dimensional stability — makes it possible to delay casting and allow multiple pouring
• Good tear strength
• Hydrophilic, so moisture in the impression field is not so critical
• Excellent shelf life — more than 2 years
• Excellent detail reproduction (20 microns)

Disadvantages:

• It is extremely stiff (flexibility 3%). It is harder than polysulfides and hardness increases with time. Removing it from undercuts is often very difficult
• The sulfonic ester can cause skin reactions. Thorough mixing is recommended before making an impression, and direct skin contact should be avoided

c. Digital Impressions:

A revolutionary change in dentistry has come with digital impressions. These are digital alternatives for creating accurate images of the gums, teeth, and mouth. It is one of the most convenient methods for recording the impression without the hassle of manipulating the material. These help in real-time visualization of the patient’s mouth, with less mess, save time, are comfortable for both the patient and the dentist, decrease gag reflex, and minimize the waste generated. However, it is an expensive alternative and requires higher initial costs, which are often compensated by the time saved and material wastage reduced in the coming years.

Read Also: Intraoral Scanners:- Applications, Benefits, Characteristics

Conclusion:

Impression materials play a foundational role in successful dental treatments. From quick alginate impressions to highly accurate elastomeric and digital techniques, each material serves a specific purpose and contributes to the overall quality of the final restoration. With such a wide variety of options available, selecting the right impression material can greatly enhance both clinical efficiency and patient satisfaction.
